Characteristics of cash crop straw biochars and their effects on soil cadmium availability

doi:10.16178/j.issn.0528-9017.20240923

Abstract

Abstract:

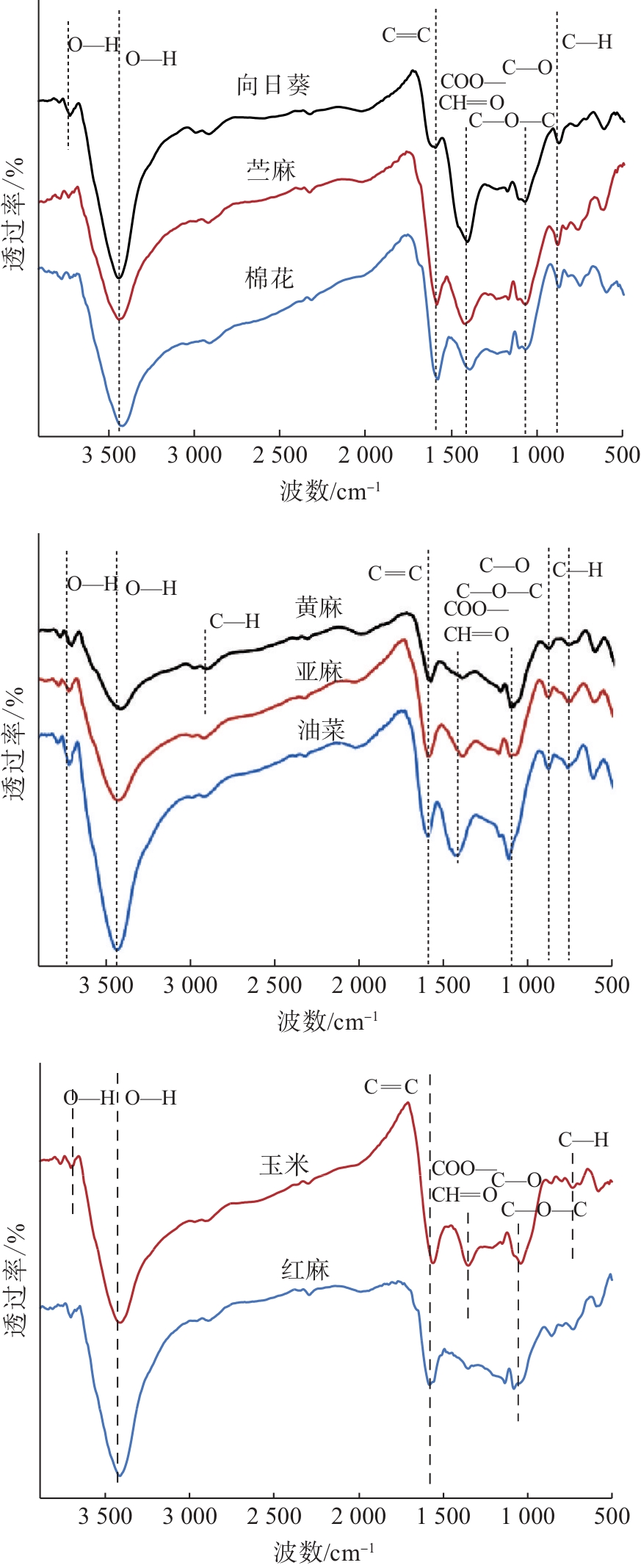

The purpose of this study was to investigate the characteristics of biochar derived from different cash crop straws and their effects on the availability of cadmium in soils，so as to provide theoretical basis and data support for the resource utilization of cash crop straw and the remediation of cadmium polluted soil. Sunflower，rape，cotton，corn，flax，jute，ramie and kenaf straw biochar were characterized by elemental analyzer，scanning electron microscope and Fourier transform infrared spectroscopy. A long-term soil culture experiment was conducted to study the effects of different cash crop straw biochar on cadmium availability and the long-term passivation of biochar. The results showed that the pores and surface roughness of biochar from different cash crop straw were different，and the specific surface areas of jute，kenaf and cotton straw biochar were higher. Different biochar had rich functional groups，especially oxygen-containing functional groups including hydroxyl（）and ester（）. Besides，the addition of cash crop straw biochar significantly （p<0.05） reduced the content of available cadmium in soil. Moreover，cash crop straw biochar had good long-term effect and stability on the passivation of cadmium，among which jute and ramie straw biochar had better effect.

Key words: cash crop, straw, biochar, characterization, farmland soil, cadmium

CLC Number:

S158

ZOU Lina, LIU Tingting, LUO Xiahong, CHEN Changli, LI Shaocui, ZHU Guanlin, AN Xia. Characteristics of cash crop straw biochars and their effects on soil cadmium availability[J]. Journal of Zhejiang Agricultural Sciences, 2026, 67(4): 999-1005.

Figures/Tables 4

References 18

[1]	环境保护部，国土资源部.全国土壤污染状况调查公报［J］. 中国环保产业，2014（5）：10-11.
	Ministry of Environmental Protection，Ministry of Land and Resources. Bulletin on the investigation of soil pollution in China［J］. China Environmental Protection Industry，2014（5）：10-11.
[2]	ZHANG T， SUN Y F， PARIKH S J，et al. Water-fertilizer regulation drives microorganisms to promote iron，nitrogen and manganese cycling：a solution for arsenic and cadmium pollution in paddy soils［J］. Journal of Hazardous Materials，2024，477：135244.
[3]	王立群，罗磊，马义兵，等. 重金属污染土壤原位钝化修复研究进展［J］. 应用生态学报，2009，20（5）：1214-1222.
	WANG L Q， LUO L， MA Y B，et al. In situ immobilization remediation of heavy metals-contaminated soils：a review［J］. Chinese Journal of Applied Ecology，2009，20（5）：1214-1222.
[4]	罗战祥，揭春生，毛旭东. 重金属污染土壤修复技术应用［J］. 江西化工，2010，26（2）：100-103.
	LUO Z X， JIE C S， MAO X D. Heavy metals pollution of soil bioremediation technology application［J］. Jiangxi Chemical Industry，2010，26（2）：100-103.
[5]	BEESLEY L， INNEH O S， NORTON G J，et al. Assessing the influence of compost and biochar amendments on the mobility and toxicity of metals and arsenic in a naturally contaminated mine soil［J］. Environmental Pollution，2014，186：195-202.
[6]	LAHORI A H， GUO Z Y， ZHANG Z Q，et al. Use of biochar as an amendment for remediation of heavy metal-contaminated soils：prospects and challenges［J］. Pedosphere，2017，27（6）：991-1014.
[7]	卢韵凝. 我国农业废弃物资源化利用现状及对策［J］. 南方农业，2022，16（6）：212-214.
	LU Y N. Present situation and countermeasures of agricultural waste resource utilization in China［J］. South China Agriculture，2022，16（6）：212-214.
[8]	王萌萌，周启星. 生物炭的土壤环境效应及其机制研究［J］. 环境化学，2013，32（5）：768-780.
	WANG M M， ZHOU Q X. Environmental effects and their mechanisms of biochar applied to soils［J］. Environmental Chemistry，2013，32（5）：768-780.
[9]	ALMAROAI Y A， USMAN A R A， AHMAD M，et al. Effects of biochar，cow bone，and eggshell on Pb availability to maize in contaminated soil irrigated with saline water［J］. Environmental Earth Sciences，2014，71（3）：1289-1296.
[10]	ELLERBROCK R H， HÖHN A， GERKE H H. Characterization of soil organic matter from a sandy soil in relation to management practice using FTIR spectroscopy［J］. Plant and Soil，1999，213（1）：55-61.
[11]	陈一川，曹培丽，胡文华，等. 农业废弃物生物炭制备及其对Cd²⁺的吸附特征［J］. 山西农业大学学报（自然科学版），2024，44（6）：129-140.
	CHEN Y C， CAO P L， HU W H，et al. Preparation of biochar from different agricultural wastes and its adsorption characteristics for Cd²⁺ ［J］. Journal of Shanxi Agricultural University（Natural Science Edition），2024，44（6）：129-140.
[12]	CUI X Q， FANG S Y， YAO Y Q，et al. Potential mechanisms of cadmium removal from aqueous solution by Canna indica derived biochar［J］. Science of the Total Environment，2016，562：517-525.
[13]	AHUJA R， KALIA A， SIKKA R，et al. Nano modifications of biochar to enhance heavy metal adsorption from wastewaters：a review［J］. ACS Omega，2022，7（50）：45825-45836.
[14]	叶协锋，于晓娜，周涵君，等. 不同秸秆生物炭的孔隙结构及其差异［J］. 生物质化学工程，2019，53（2）：41-46.
	YE X F， YU X N， ZHOU H J，et al. Pore structure and fractal characteristics of biochars from different straw［J］. Biomass Chemical Engineering，2019，53（2）：41-46.
[15]	QUAN G X， FAN Q Y， CUI L Q，et al. Simulated photocatalytic aging of biochar in soil ecosystem：insight into organic carbon release，surface physicochemical properties and cadmium sorption［J］. Environmental Research，2020，183：109241.
[16]	谭慧，王少锋，廉梅花，等. 钙基胡敏酸改性生物炭的制备及其对镉污染的修复［J］. 生态学杂志，2024，43（9）：2859-2870.
	TAN H， WANG S F， LIAN M H，et al. Preparation of biochar modified by calcium and humic acid for cadmium pollution remediation［J］. Chinese Journal of Ecology，2024，43（9）：2859-2870.
[17]	汤家庆，张绪，黄国勇，等. 水分条件对生物炭钝化水稻土铅镉复合污染的影响［J］. 环境科学，2021，42（3）：1185-1190.
	TANG J Q， ZHANG X， HUANG G Y，et al. Effect of water regimes on Pb and Cd immobilization by biochar in contaminated paddy soil［J］. Environmental Science，2021，42（3）：1185-1190.
[18]	粟一峰. 施用改性苎麻生物炭联合种植苎麻修复镉污染土壤的研究［D］. 长沙：湖南农业大学，2021.
	SU Y F. Study on remediation of cadmium contaminated soil by using modified ramie biochar and planting ramie［D］. Changsha：Hunan Agricultural University，2021.

生物炭类型	氮元素含量/%	碳元素含量/%	氢元素含量/%	硫元素含量/%	比表面积/（m²·g^-1）	孔容/（cm³·g^-1）	平均孔径/nm
向日葵	0.26	63.59	1.33	0.17	23.37	0.016	38.77
黄麻	0.51	71.54	1.50	0.75	345.47	0.157	3.28
亚麻	0.90	74.44	2.54	0.15	74.49	0.036	2.71
油菜	0.34	67.89	1.87	0.68	53.63	0.029	8.66
玉米	1.59	59.70	1.80	0.22	3.21	0.010	27.93
苎麻	0.84	71.27	1.96	0.15	90.08	0.045	6.76
棉花	1.13	74.12	2.18	0.12	271.05	0.127	3.63
红麻	0.38	76.32	2.01	0.39	318.07	0.145	3.16

生物炭类型	氮元素含量/%	碳元素含量/%	氢元素含量/%	硫元素含量/%	比表面积/（m²·g^-1）	孔容/（cm³·g^-1）	平均孔径/nm
向日葵	0.26	63.59	1.33	0.17	23.37	0.016	38.77
黄麻	0.51	71.54	1.50	0.75	345.47	0.157	3.28
亚麻	0.90	74.44	2.54	0.15	74.49	0.036	2.71
油菜	0.34	67.89	1.87	0.68	53.63	0.029	8.66
玉米	1.59	59.70	1.80	0.22	3.21	0.010	27.93
苎麻	0.84	71.27	1.96	0.15	90.08	0.045	6.76
棉花	1.13	74.12	2.18	0.12	271.05	0.127	3.63
红麻	0.38	76.32	2.01	0.39	318.07	0.145	3.16
