Correlation between physical properties of tobacco leaves and lamina structure

doi:10.16178/j.issn.0528-9017.20240696

Abstract

Abstract:

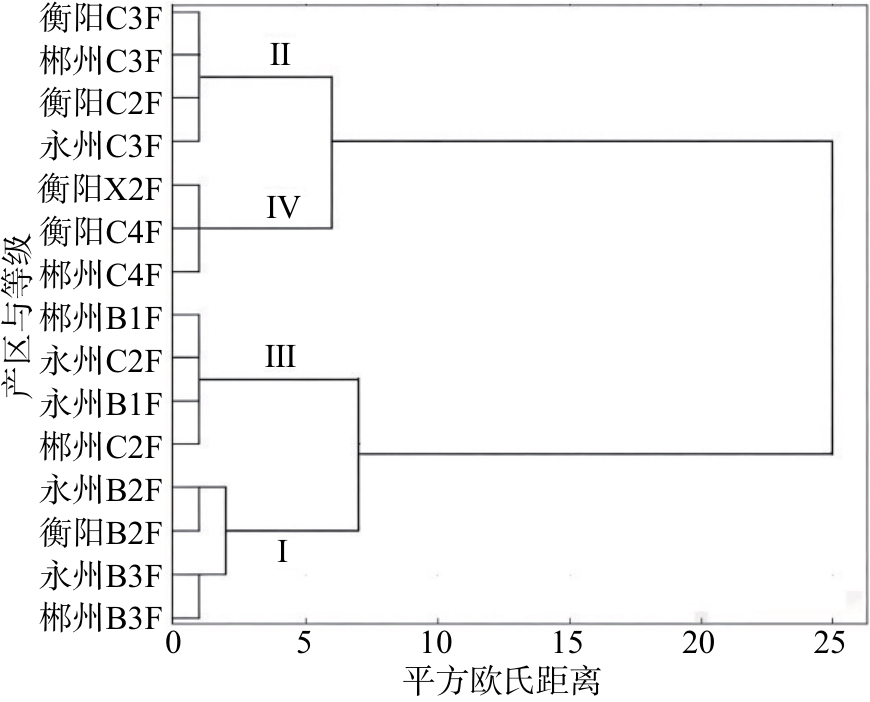

In order to improve lamina structure，tobacco leaf samples were analyzed by factor analysis and cluster analysis，to study the relationship between the physical properties of flue-cured tobacco leaves and lamina structure. The results showed that the overall trend of leaf density，softness，shear force，puncture force，adhesion force and thickness decreased gradually from upper leaves to lower leaves，and the mechanical properties of tobacco leaves from different producing areas and different grades were quite different. The leaf rate of >25.40 mm×25.40 mm and >12.70 mm×12.70 mm was significantly （p<0.05） or extremely significantly （p<0.01） correlated with thickness， leaf density， softness， shear force， adhesion， tensile force and puncture force， while the leaf rate of <2.36 mm×2.36 mm was negatively correlated with puncture force. The rate of stem content in leaves was significantly or extremely significantly positively correlated with the length，width，and stem content rate，and was extremely significantly negatively correlated with the tensile force and puncture force. Other physical indicators had no significant correlation with the lamina structure. The results of cluster analysis showed that tobacco leaf samples could be divided into 4 categories，and the comprehensive physical characteristics of the same category were relatively close. By setting different equipment parameters and grouping processing according to the category，the tobacco leaf crushing process could be reduced，and the lamina structure economic indexes of tobacco leaves with different physical characteristics were further optimized after beating and re-drying.

Key words: tobacco leaf, physical property, beating and redrying, lamina structure, correlation

CLC Number:

S572

WANG Yimin, GUO Jun, ZHU Zhiyin, PENG Dong, LIU Guosheng, SONG Zhiyong, LE Jiajie, JIANG Pinglin, LUO Xianhua, SHUAI Ming, JIAN Panfeng, GUO Yun, WU Yunjie, WEN Yongcai. Correlation between physical properties of tobacco leaves and lamina structure[J]. Journal of Zhejiang Agricultural Sciences, 2026, 67(4): 872-877.

Figures/Tables 6

References 17

[1]	王满. 烤烟打叶复烤片烟结构稳定性评价［D］. 郑州：河南农业大学，2011.
	WANG M. Evaluation on stability of threshing and redrying lamina structure of tobacco［D］. Zhengzhou：Henan Agricultural University，2011.
[2]	郭冲，杨洋，鄢敏，等. 烤烟成熟过程中常规化学成分变化趋势研究进展［J］. 现代农业科技，2021（7）：8-10.
	GUO C， YANG Y， YAN M，et al. Research progress on the change trend of conventional chemical components in flue-cured tobacco during ripening［J］. Modern Agricultural Science and Technology，2021（7）：8-10.
[3]	田丽，张超帅. 烟叶的物理特性和打叶参数的关系［J］. 农业科技与信息，2016（23）：82-83.
	TIAN L， ZHANG C S. Relationship between physical characteristics of tobacco leaves and threshing parameters［J］. Agricultural Science-Technology and Information，2016（23）：82-83.
[4]	陈家东，陶智麟，刘全喜. 打叶复烤加工过程造碎及碎烟处理工艺研究［J］. 烟草科技，2000，33（4）：4-7.
	CHEN J D， TAO Z L， LIU Q X. Study on crushing and tobacco crushing treatment during threshing and redrying［J］. Tobacco Science & Technology，2000，33（4）：4-7.
[5]	刘利锋，王花俊，朱晓牛，等. 不同打叶参数对打叶质量的影响［J］. 安徽农业科学，2009，37（24）：11519-11520.
	LIU L F， WANG H J， ZHU X N，et al. Influences of different threshing parameters on threshing quality［J］. Journal of Anhui Agricultural Sciences，2009，37（24）：11519-11520.
[6]	刘继辉，高占勇，林鸿佳，等. 高温烘焙前后复烤烟叶物理特性的变化［J］. 云南农业大学学报（自然科学版），2016，31（4）：719-724.
	LIU J H， GAO Z Y， LIN H J，et al. Changes of redried tobacco physical properties before and after high temperature baking［J］. Journal of Yunnan Agricultural University（Natural Science），2016，31（4）：719-724.
[7]	卫盼盼，吴祚友，安银立，等. 烟叶物理特性与打叶风分工艺参数的关系［J］. 烟草科技，2014，47（8）：5-9.
	WEI P P， WU Z Y， AN Y L，et al. Relationships between physical characteristics of tobacco leaves and technological parameters of threshing and pneumatic separation［J］. Tobacco Science & Technology，2014，47（8）：5-9.
[8]	吴祚友，卫盼盼，窦家宇，等. 烟叶物理特性与打叶质量的关系［J］. 江西农业学报，2014，26（3）：73-75.
	WU Z Y， WEI P P， DOU J Y，et al. Relationship between physical characteristics and threshing quality of tobacco leaf［J］. Acta Agriculturae Jiangxi，2014，26（3）：73-75.
[9]	吉书文，腾兆波. 烟草检测方法［M］. 郑州：河南科学技术出版社，1997
[10]	张玉海，王信民，邓国栋，等. 质构仪法测定烟叶的粘附力［J］. 烟草科技，2011，44（11）：5-9.
	ZHANG Y H， WANG X M， DENG G D，et al. Determination of tobacco leaf adhesion with texture analyzer［J］. Tobacco Science & Technology，2011，44（11）：5-9.
[11]	张玉海，邓国栋，冯春珍，等. 含水率对烟叶力学特性的影响［J］. 烟草科技，2013，46（1）：10-12.
	ZHANG Y H， DENG G D， FENG C Z，et al. Effects of moisture content in tobacco leaf on its mechanical properties［J］. Tobacco Science & Technology，2013，46（1）：10-12.
[12]	占俊文，沈雪婷，何宽信，等. 江西烤烟柔软度与物理特性的关系分析及适宜区间研究［J］. 中国农业科技导报，2017，19（1）：131-137.
	ZHAN J W， SHEN X T， HE K X，et al. Study on relationship between softness and physical characteristics of flue-cured tobacco and the suitable softness range in Jiangxi Province［J］. Journal of Agricultural Science and Technology，2017，19（1）：131-137.
[13]	徐波，姜焕元，范明登，等. 基于翠碧1号品种烟叶典型力学特性的打叶复烤加工技术及应用［J］. 烟草科技，2020，53（7）：80-86.
	XU B， JIANG H Y， FAN M D，et al. Threshing and redrying technology based on typical mechanical characteristics of tobacco leaves of cv. Cuibi 1［J］. Tobacco Science & Technology，2020，53（7）：80-86.
[14]	娄元菲，杨雨波，欧明毅，等. 不同地区主栽烤烟品种的力学与打叶特性分析［J］. 贵州农业科学，2019，47（1）：131-134.
	LOU Y F， YANG Y B， OU M Y，et al. Analysis of mechanical and threshing properties about main flue-cured tobacco varieties in partial areas［J］. Guizhou Agricultural Sciences，2019，47（1）：131-134.
[15]	喻奇伟，堵劲松，陈雪，等. 贵州毕节3个主栽烤烟品种力学特性分析［J］. 湖南农业科学，2018（4）：78-80.
	YU Q W， DU J S， CHEN X，et al. Analysis on mechanical properties of three flue-cured tobacco cultivars in Bijie tobacco growing area［J］. Hunan Agricultural Sciences，2018（4）：78-80.
[16]	李自强. 罗平植烟土壤特性与烟叶质量的关系研究［D］. 北京：中国农业科学院，2010.
	LI Z Q. The study on relationship between soil characteristics and quality of flue-cured tobacco leaves of Luoping［D］. Beijing：Chinese Academy of Agricultural Sciences，2010.
[17]	刘配文. 不同产区的烟叶物理特性对复烤加工影响的研究［D］. 长沙：湖南农业大学，2013.
	LIU P W. The research of an impact on redrying processing by the tobacco physical characteristics of the different regions［D］. Changsha：Hunan Agricultural University，2013.

产区与等级	长度/cm	宽度/cm	单叶质量/g	厚度/mm	含梗率/%	叶面密度/（mg·m^-2）	柔软度/mN	剪切力/N	穿刺力/N	黏附力/N	拉力/N
永州B1F	65.11±4.12	17.21±2.37	7.21±1.82	98.41±8.79	27.65±3.13	6.32±1.79	55.54±22.67	19.45±3.24	1.45±0.15	4.54±1.12	2.92±0.67
永州B2F	68.27±4.33	18.31±2.67	6.99±1.91	118.32±9.76	25.20±3.07	6.90±1.72	59.67±20.33	21.47±3.11	1.76±0.12	4.22±1.65	3.46±0.48
永州B3F	65.31±4.87	16.57±2.55	8.77±1.92	103.25±9.41	31.39±2.87	6.73±1.65	60.25±16.27	18.39±3.02	1.52±0.22	4.32±1.01	3.12±0.61
衡阳X2F	60.32±5.28	22.19±2.98	4.09±1.43	77.35±16.13	33.21±1.98	3.25±1.24	22.67±10.34	11.65±2.65	1.19±0.43	3.36±0.54	1.83±0.34
衡阳B2F	67.01±5.52	20.51±2.66	8.52±1.45	107.32±14.68	24.49±1.82	6.98±1.35	71.67±15.56	22.22±2.57	1.62±0.37	4.09±2.65	2.84±0.49
郴州B1F	67.54±4.11	16.65±2.27	6.04±1.76	105.35±18.72	24.62±2.74	6.57±1.75	78.23±18.62	18.25±4.35	1.58±0.35	4.67±2.17	3.04±0.84
郴州B3F	67.97±4.02	17.31±2.17	6.20±1.62	111.74±19.68	25.47±2.34	6.87±1.61	84.34±26.64	19.16±3.67	1.67±0.31	4.36±2.11	3.12±0.76
衡阳C4F	65.32±5.87	25.32±2.61	7.54±1.66	91.64±15.31	24.64±2.03	5.15±1.31	30.35±12.36	16.58±2.13	1.33±0.44	5.05±1.57	2.01±0.55
衡阳C3F	70.32±4.73	27.82±2.51	8.49±1.51	93.35±14.35	30.77±2.09	5.23±1.28	43.78±11.57	16.96±2.01	1.37±0.40	4.58±2.65	2.21±0.72
衡阳C2F	67.31±4.82	24.27±2.32	11.77±1.53	96.31±14.28	27.26±1.88	5.52±1.24	55.24±13.26	17.66±1.87	1.26±0.42	4.86±1.41	2.29±0.83
永州C3F	62.31±4.25	26.12±2.64	9.76±1.94	85.56±8.97	35.66±3.22	4.35±1.59	30.67±10.32	16.55±2.84	1.46±0.22	5.76±1.38	2.34±0.62
永州C2F	67.31±4.87	19.54±2.71	11.32±1.89	95.67±10.34	31.89±3.11	4.74±1.51	28.38±11.74	17.26±3.97	1.40±0.25	5.07±2.67	2.40±0.82
郴州C3F	61.38±3.79	25.81±2.13	10.04±1.57	91.87±21.37	28.24±2.13	4.58±1.44	46.61±25.32	15.22±4.25	1.30±0.28	5.86±1.28	2.20±1.13
郴州C2F	64.31±3.12	25.19±1.87	11.00±1.23	100.61±20.74	31.58±2.24	4.86±1.38	38.41±23.27	14.45±4.12	1.41±0.24	6.19±1.71	2.56±1.02
郴州C4F	60.57±3.51	24.36±2.31	9.95±1.38	88.26±18.62	27.32±2.18	4.78±1.42	27.42±21.67	14.68±3.57	1.26±0.36	5.67±2.67	1.94±0.71

产区与等级	长度/cm	宽度/cm	单叶质量/g	厚度/mm	含梗率/%	叶面密度/（mg·m^-2）	柔软度/mN	剪切力/N	穿刺力/N	黏附力/N	拉力/N
永州B1F	65.11±4.12	17.21±2.37	7.21±1.82	98.41±8.79	27.65±3.13	6.32±1.79	55.54±22.67	19.45±3.24	1.45±0.15	4.54±1.12	2.92±0.67
永州B2F	68.27±4.33	18.31±2.67	6.99±1.91	118.32±9.76	25.20±3.07	6.90±1.72	59.67±20.33	21.47±3.11	1.76±0.12	4.22±1.65	3.46±0.48
永州B3F	65.31±4.87	16.57±2.55	8.77±1.92	103.25±9.41	31.39±2.87	6.73±1.65	60.25±16.27	18.39±3.02	1.52±0.22	4.32±1.01	3.12±0.61
衡阳X2F	60.32±5.28	22.19±2.98	4.09±1.43	77.35±16.13	33.21±1.98	3.25±1.24	22.67±10.34	11.65±2.65	1.19±0.43	3.36±0.54	1.83±0.34
衡阳B2F	67.01±5.52	20.51±2.66	8.52±1.45	107.32±14.68	24.49±1.82	6.98±1.35	71.67±15.56	22.22±2.57	1.62±0.37	4.09±2.65	2.84±0.49
郴州B1F	67.54±4.11	16.65±2.27	6.04±1.76	105.35±18.72	24.62±2.74	6.57±1.75	78.23±18.62	18.25±4.35	1.58±0.35	4.67±2.17	3.04±0.84
郴州B3F	67.97±4.02	17.31±2.17	6.20±1.62	111.74±19.68	25.47±2.34	6.87±1.61	84.34±26.64	19.16±3.67	1.67±0.31	4.36±2.11	3.12±0.76
衡阳C4F	65.32±5.87	25.32±2.61	7.54±1.66	91.64±15.31	24.64±2.03	5.15±1.31	30.35±12.36	16.58±2.13	1.33±0.44	5.05±1.57	2.01±0.55
衡阳C3F	70.32±4.73	27.82±2.51	8.49±1.51	93.35±14.35	30.77±2.09	5.23±1.28	43.78±11.57	16.96±2.01	1.37±0.40	4.58±2.65	2.21±0.72
衡阳C2F	67.31±4.82	24.27±2.32	11.77±1.53	96.31±14.28	27.26±1.88	5.52±1.24	55.24±13.26	17.66±1.87	1.26±0.42	4.86±1.41	2.29±0.83
永州C3F	62.31±4.25	26.12±2.64	9.76±1.94	85.56±8.97	35.66±3.22	4.35±1.59	30.67±10.32	16.55±2.84	1.46±0.22	5.76±1.38	2.34±0.62
永州C2F	67.31±4.87	19.54±2.71	11.32±1.89	95.67±10.34	31.89±3.11	4.74±1.51	28.38±11.74	17.26±3.97	1.40±0.25	5.07±2.67	2.40±0.82
郴州C3F	61.38±3.79	25.81±2.13	10.04±1.57	91.87±21.37	28.24±2.13	4.58±1.44	46.61±25.32	15.22±4.25	1.30±0.28	5.86±1.28	2.20±1.13
郴州C2F	64.31±3.12	25.19±1.87	11.00±1.23	100.61±20.74	31.58±2.24	4.86±1.38	38.41±23.27	14.45±4.12	1.41±0.24	6.19±1.71	2.56±1.02
郴州C4F	60.57±3.51	24.36±2.31	9.95±1.38	88.26±18.62	27.32±2.18	4.78±1.42	27.42±21.67	14.68±3.57	1.26±0.36	5.67±2.67	1.94±0.71

指标	长度	宽度	单叶质量	厚度	含梗率	叶面密度	柔软度	剪切力	穿刺力	黏附力	拉力
>25.40 mm×25.40 mm的叶片率	0.103	0.034	0.054	0.407^**	0.078	0.429^*	0.413^**	0.497^**	-0.673^**	0.644^**	-0.461^**
>12.70 mm×12.70 mm的叶片率	0.132	0.046	0.085	0.503^**	0.109	0.358^*	0.406^**	0.553^**	0.561^**	0.528^**	0.486^**
<2.36 mm×2.36 mm的叶片率	-0.047	-0.095	-0.098	-0.224	0.090	-0.372	0.125	-0.359	-0.396^*	0.089	-0.231
叶中含梗率	0.403^*	0.286^*	0.122	0.021	0.761^**	0.134	0.079	0.081	-0.461^**	0.102	-0.341^**

指标	长度	宽度	单叶质量	厚度	含梗率	叶面密度	柔软度	剪切力	穿刺力	黏附力	拉力
>25.40 mm×25.40 mm的叶片率	0.103	0.034	0.054	0.407^**	0.078	0.429^*	0.413^**	0.497^**	-0.673^**	0.644^**	-0.461^**
>12.70 mm×12.70 mm的叶片率	0.132	0.046	0.085	0.503^**	0.109	0.358^*	0.406^**	0.553^**	0.561^**	0.528^**	0.486^**
<2.36 mm×2.36 mm的叶片率	-0.047	-0.095	-0.098	-0.224	0.090	-0.372	0.125	-0.359	-0.396^*	0.089	-0.231
叶中含梗率	0.403^*	0.286^*	0.122	0.021	0.761^**	0.134	0.079	0.081	-0.461^**	0.102	-0.341^**

主成分	特征值	方差贡献率/%	累计方差贡献率/%
f₁	4.46	34.15	34.15
f₂	2.03	20.43	54.58
f₃	1.89	18.32	72.90
f₄	1.78	12.35	85.25
